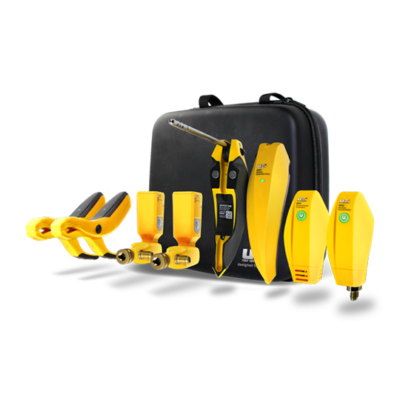

Smart Refrigerant Probes Deluxe Kit w/ Vacuum Gauge HUB8

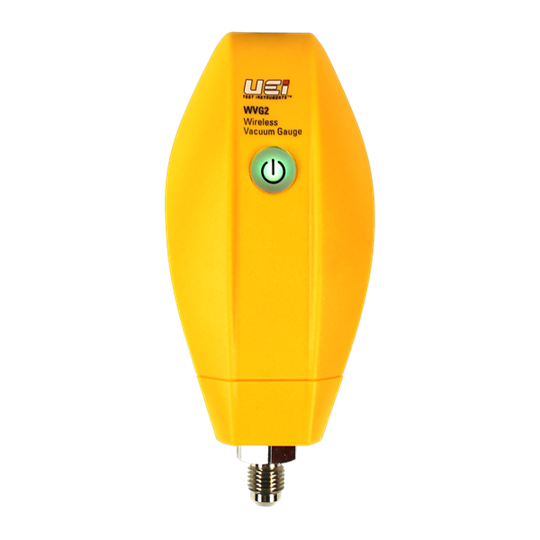

Wireless Vacuum Gauge Probe

- Range: 0-20,000 Microns
- 1-micron Resolution, ±5% reading ±5 microns accuracy
- Oil contamination and sensor failure detection
- Instant warm-up and response time

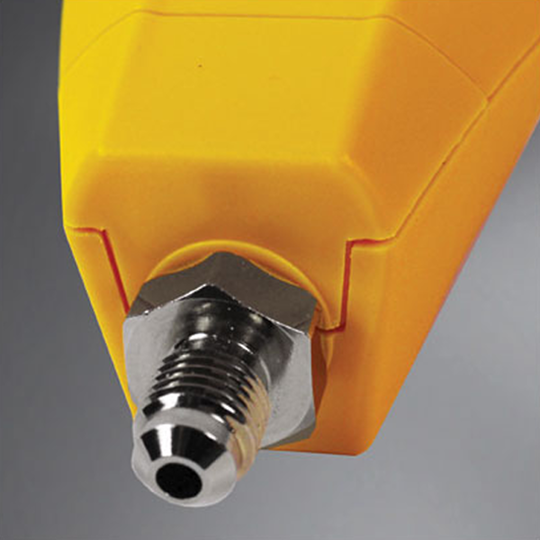

- 1/4” Nickel-plated flare fitting
- 45° coupler included

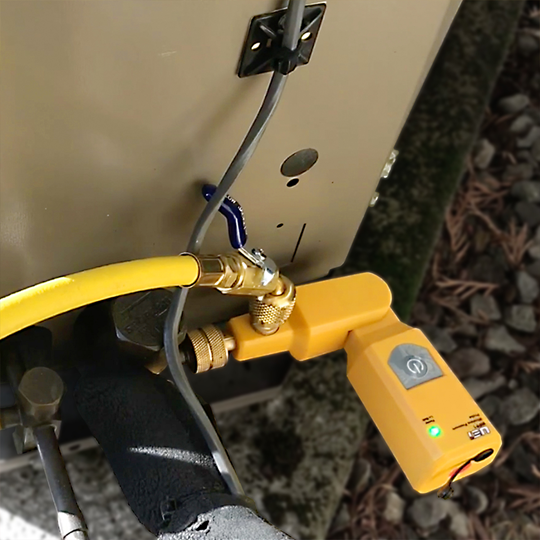

Wireless Pressure Probes

• Pass through refrigerant port for easily adding or recovering refrigerant from the system without disconnecting probes.
• 180° rotation for easy use in cramped spaces.
• Range: 0 to 725 psig, resolution 0.1 psi.
• Accuracy: 0.5%FS (@25±3°C), total 1%FS

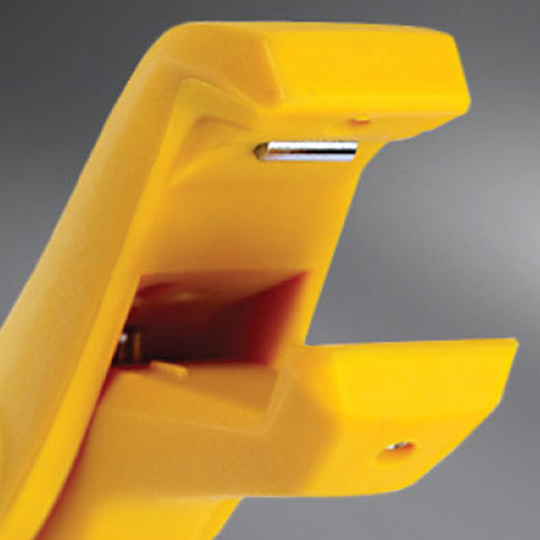

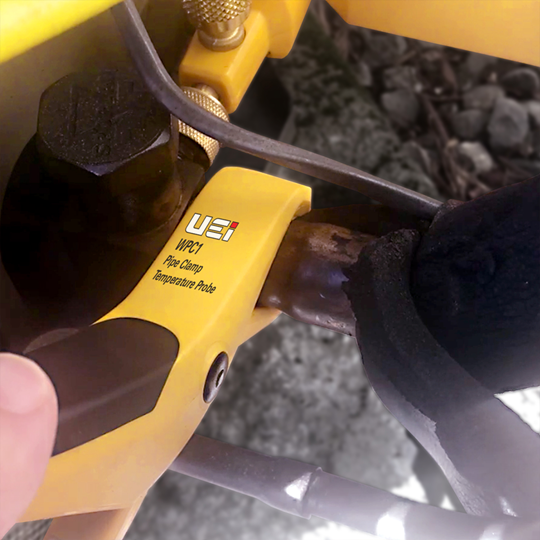

Wireless Pipe Clamps

• Sensor is thermally isolated from ambient temperature.
• High accuracy thermistor provides better results than thermocouples and doesn’t require field calibration.
• Slim design fits into tight spaces
• Range 32° to 176°F (0° to 80°C), resolution 0.1°F.
• Response time 30 sec. Accuacy ±0.6°F (±0.3°C).

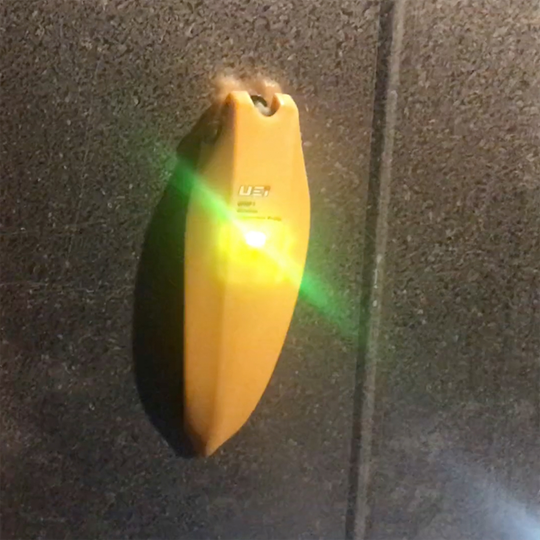

Wireless Hygrometer Probes

• Slimmest 1/4” hygrometer probe means smaller drill holes.
• Magnetic mount and locking probe holds WHP1 to plenum for hands-free operation.
• Temp range: 32° to 140°F (0° to 60°C), Accuracy: ±0.5°F (±0.3°C).
• Relative Humidity: 0 to 100% (0.1% resolution, ±3% accuracy from 20 to 80% ±5% otherwise).

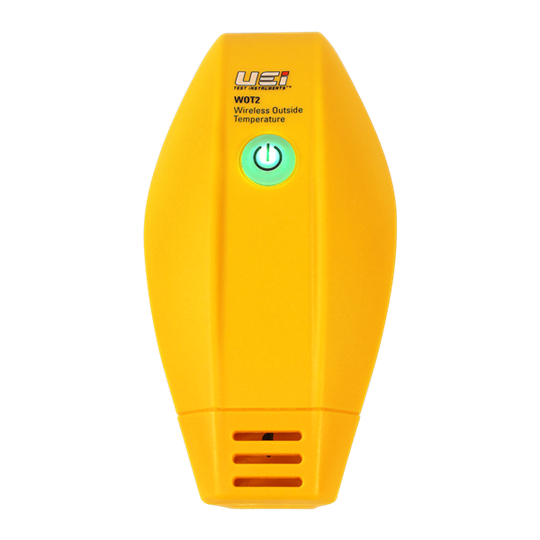

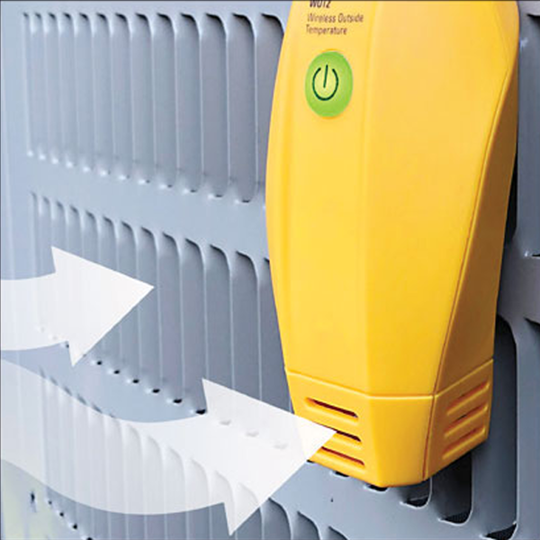

Wireless Outdoor Temperature Probe

• Temperature range: 32° - 180°F (0° - 82°C)

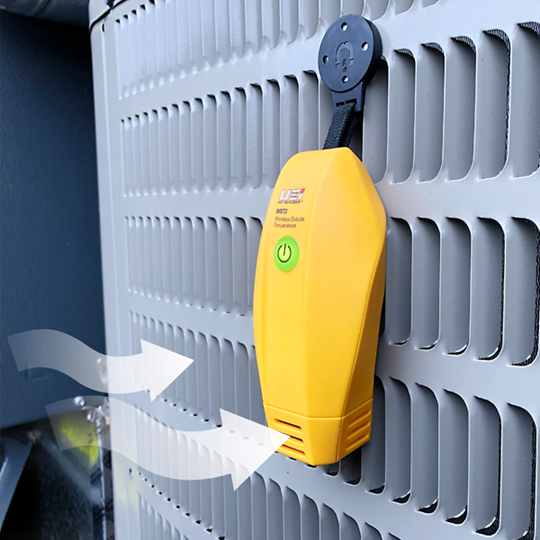

• Magnetic hanger allows for temperature measurement in direct air stream.
• Compact light weight design.
