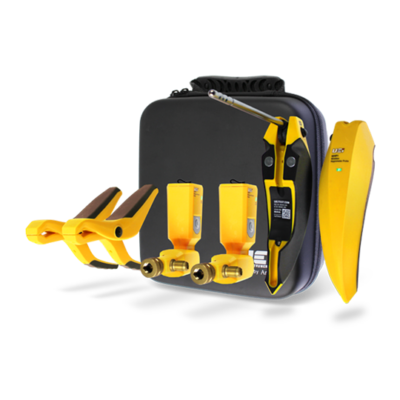

Smart Refrigerant Complete Kit HUB6

Features

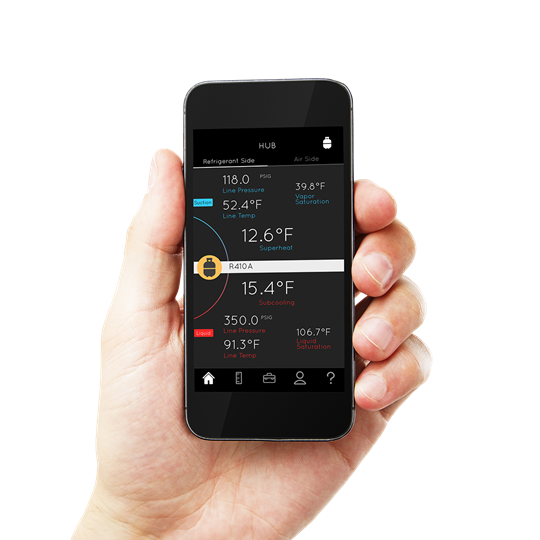

• In App system refrigerant charging calculations.
• In App temperature split and psychrometric calculations.

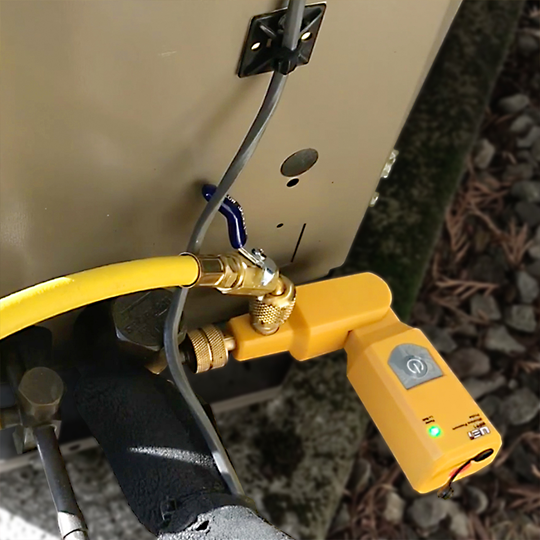

• 2 Wireless Pressure Probes (WPP1)
     - Pass through refrigerant ports for easily adding or recovering refrigerant from the system without disconnecting probes.
     - 180° rotation for easy use in tight spaces.
     - Range 0 to 725 psig, Resolution 0.1 psi.
     - Accuracy 0.5%FS, total 1%FS for 32° to 158°F (0° to 70°C).
• 2 Temperature Pipe Clamps (WPC2)
     - High accuracy thermistor provides better results than
thermocouples and doesn’t require field calibration.
     - Range 32°F to 176°F (0°C to 80°C), Resolution 0.1°F.
     - Response time 30 sec. Accuracy ±0.6?F (±0.3°C).
• 2 Wireless Hygrometer Probes (WHP1)
     - Slimmest 1/4” hygrometer probe means smaller drill holes.
     - Magnetic mount holds WHP1 to plenum for hands-free operation.
     - Temp range: 32° to 140°F (0 to 60°C), Accuracy: ±0.5°F (±0.3°C).
     - Relative Humidity: 0 to 100% (0.1% resolution, ±3% accuracy from 20 to 80% ±5% otherwise).
• Wireless distance of 150ft (50m) pending environment.
