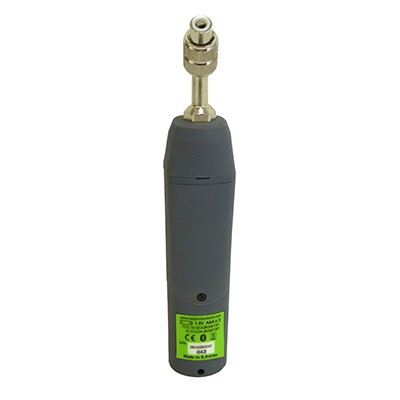

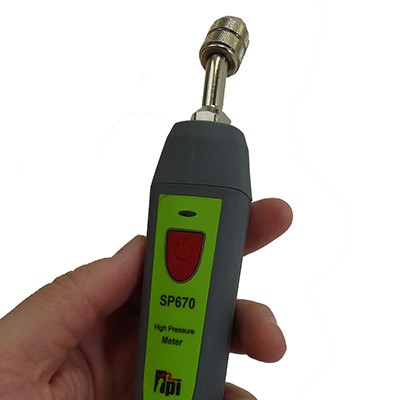

Smart Probe Low and High Pressure Probe SP670

The TPI SP670 Smart Pressure Probe is used to measure pressure on refrigeration systems. It connects to a smart device using the TPI View App.

It sends live measurement data and can be used in conjunction with the SP623 Smart Temperature Clamp Probe to calculate Superheat and Subcooling using the App. The angled ¼´fitting allows access to service ports in close spaces.

The SP670 Schrader Valve Depressor is adjustable for use with worn valves in test ports. It can be serviced as well to extend the life of the probe.

Features

• Pressure Range: -14.7 psi to 870 psi (-1 bar to 60 bar)
• Connection Type: 7/16″-20 UNF / ¼” SAE angled for connections in tight spaces
• Over pressure protected to 1000 psi
• Adjustable Schrader valve depressor for use on worn valves
• Replaceable Schrader valve depressor
• View “LIVE” High Pressure readings
• Save, e-mail and/or print pressure readings with GPS tagged date & time on report
• Ideal for checking for compressor leaks
• Store ALL GPS tagged Test Results within the TPI View Job Management
